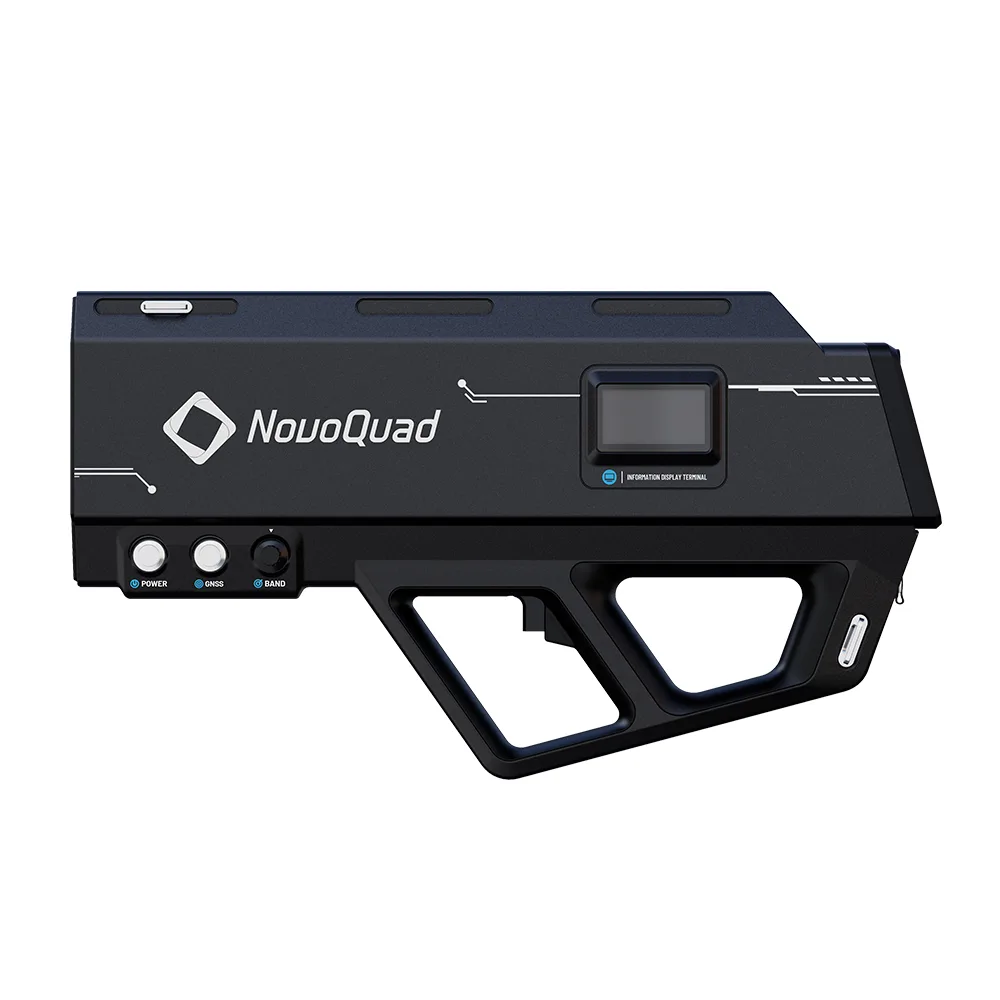

ND-BD003 Handheld Anti-Drone System
Overview
ND-BD003 Handheld Anti-Drone System (Anti Drone Jammer / Anti Drone Gun / Anti Drone Rifle / C-UAS Gun) integrates detection, countermeasure, display, control and power supply all in one. Traditional anti drone jammers / anti drone guns have to rely on external detection devices or human visual searching to detect drones then jam drones, these external anti drone devices require pre-operation assembly, and human visual searching causes a large workload and easily misses targets. However, with highly integrated detector, this anti drone jammer / handheld anti drone system overcomes these shortcomings and significantly improves the operational efficiency, considering as an evolving anti drone gun / anti drone rifle / C-UAS gun.
With small size, light weight and good mobility, this handheld anti drone system / anti drone jammer is suitable for low-altitude protection tasks for important meeting, large event and daily patrol in fixed places to detect and jam a drone. This anti-drone gun / rifle offers quick response for cooperative deployment with other stationary anti drone systems and anti drone devices.
Nowadays, the widespread use of drones has raised concerns about security and privacy, leading to the urgent need of buying anti drone gun. The anti drone gun price is a crucial factor to consider. With various C-UAS Gun models available, the anti drone gun price varies, catering to different security needs and budgets. Our ND-BD003 Anti Drone Gun for sale stands out in the market. Not only does it lead in performance, our ND-BD003 C-UAS Gun is also available at a notably competitive price. This model is the leading choice of customers for anti drone gun for sale. Deploying the ND-BD003 C-UAS Gun has proven to be a wise and worthwhile investment for key low-altitude security.
Features
- Programmable, interference frequency and bandwidth could be customized
- Target direction finding and warning
- Passive detection and directional control
- APP control platform
The system supports type-c interface and can be connected to mobile terminal (Android) via USB cable. - Removable battery
- Portable and easy to use
- Safe to operators and green to environment
Complete Set
- Jammer Host
- Terminal Mobile (Optional)
- Battery
- Power Cable
- Protection Case
- User Manual
Specifications
| Detection frequency band | 2.4-2.48GHz, 5.725-5.8GHz |
| Jamming frequency band | The jamming function covers a wide frequency range, mainly covering 0.3-2.5GHz, 1.52-1.62GHz, 2.4-2.48GHz, 5.15-5.25GHz, 5.725-5.850GHz, of which 0.3-2.5GHz is software defined frequency band. With broadband design, 0.3-2.5G frequency band can be covered via broadband digital sweep source and wideband power amplifier. |
| Jamming output power (85W) | 0.4-2GHz, 20W |
| GPS L1, 20W | |
| 2.4-2.48GHz, 20W | |
| 5.725-5.850GHz, 25W | |
| Effective detection distance | ≥1.5km (up to 2km depending on circumstances) |
| Effective interference distance | 1km (0.1W transmitting power of target drone) |
| Interference to signal ratio | <10:1 |
| Coverage area | Azimuth: ±30°; Elevation: ±30° |
| Working hour | Continuous working time: >1.5 hours; Standby time: >10 hours |
| Dimension | 500 x 300 x 100mm |
| Weight | ≤3.3kg (battery included) |
Anti-Drone System
• Programmable, interference frequency and bandwidth could be customized
• Target direction finding and warning
• Passive detection and directional control
• APP control platform
The system supports type-c interface and can be connected to mobile terminal (Android) via USB cable.
• Removable battery
• Portable and easy to use
• Safe to operators and green to environment
| • Jammer Host | × 1 |
| • Terminal Mobile (Optional) | × 1 |
| • Battery | × 1 |
| • Power Cable | × 1 |
| • Protection Case | × 1 |
| • User Manual | × 1 |
FAQs
Q1: How does this handheld anti drone system detect drones?
A1: This drone signal jammer has a built-in RF detector, which could detect the RF signals sent out by drones. The built-in RF detector is omnidirectional and runs automatically.
Q2: How does this anti drone gun / anti drone rifle counter drones / jam a drone?
A2: This drone gun could force the drone to fly back or land. If the drone lost the communication signal, it will fly back to the take-off point; if the GPS signal is jammed by this drone signal jammer, the drone will land.
Q3: Could this anti drone device be operated at night?
A3: Yes. This anti drone device will raise visual and audible alarm when a drone is detected. User could turn off the audible alarm to stay completely stealthy during the task.
Q4: What is the user-defined jamming frequency band for?
A4: User-defined frequency band (0.4-2GHz) is reserved for different application scenarios. It could be used to counter or jam drones using bands other than GPS L1, 2.4GHz or 5.8GHz.
Q5: What are the main functions of this c-uas gun’s APP control platform?
A5: User could set system parameters and user-defined frequency band, review map and alarm information, and check the video recording via the APP control platform.
