ND-BU002 High-End Anti-Drone System

Overview

ND-BU002 High-End Anti-Drone System is an upgraded version based on ND-BU001 for drone defense and critical area protection. Adopting advanced 3D pulse doppler radar, the system has extended detection range dramatically. The system mainly consists of Detecting Unit, Jamming Unit and Camera Unit.

• The Detecting Unit, which employs the advanced 3D pulse doppler radar, can detect and track long-distance drones, in both horizontal angle and vertical angle.

• Guided by the accurate drone position information, the Jamming Unit with tall antenna and low power jammer will interfere with the remote control signals and navigation signals of the drone and force it to land or return.

• The Camera Unit can efficiently record the tracks of the detected drone for further analysis, and also assist the Detecting Unit for more accurate monitoring.

Features

Main Features of Detecting Unit

• Advanced radar technology
• Multi-dimensional precision detection
• Superior detection performance for Low-Slow-Small (LSS) targets
• Lightweight, portable and adaptable

Main Features of Jamming Unit

• Full-band jamming, software definable
• Digital jamming source design
• All-in-one design
• High power broadband amplifier design
• Easy installation and wide application

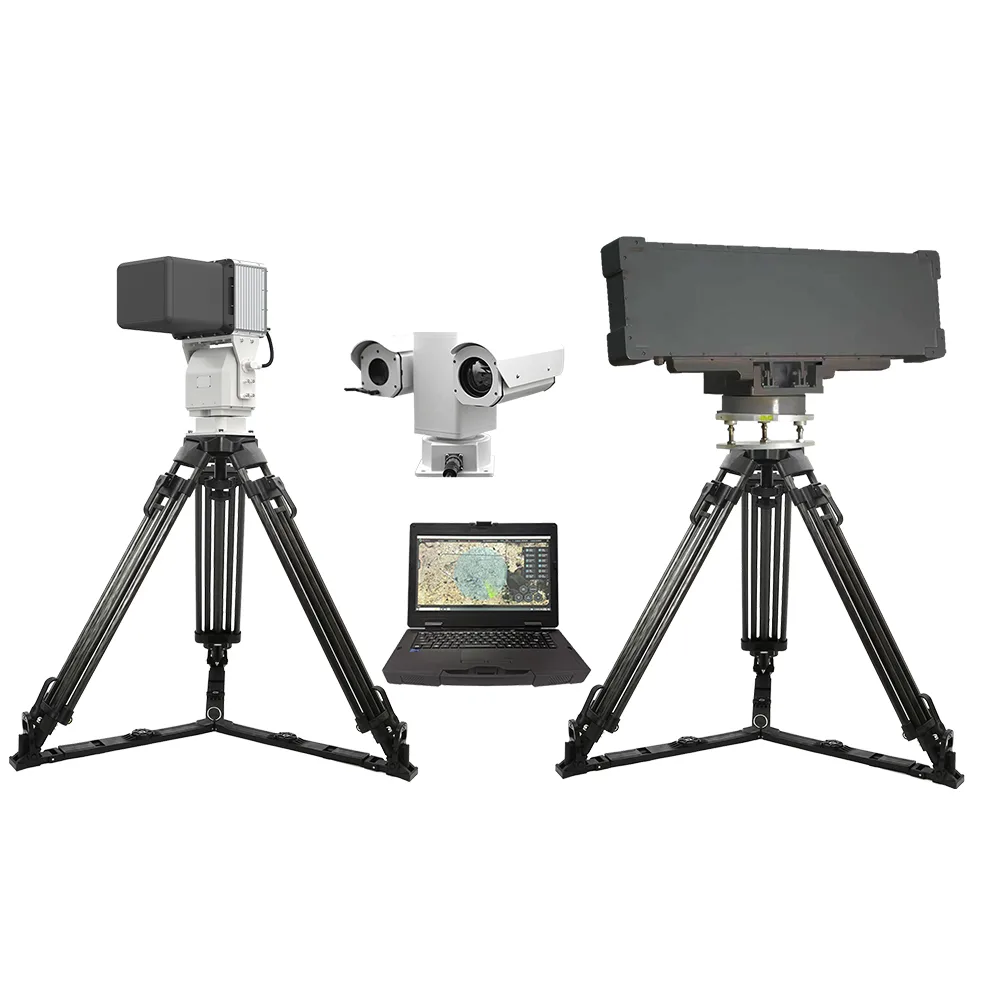

Complete Set

• Detecting Unit
• Jamming Unit
• Camera Unit
• Control Software
• Power Cable
• User Manual

Specifications

Detecting Unit
Working frequency	X band (9GHz-10.20GHz)
Detection range	≥5km (DJI Phantom 4) False alarm rate: 10-6; Detection rate: 90%; Data rate: 6s
Blind zone	≤180m
Detection angle	Azimuth: 0° ~ 360°; Pitch: ≥30°
Number of targets	≥200
Weight	≤29kg (tripod excluded)
Protection grade	IP65

Jamming Unit
Jamming frequency range	Jamming channel output can be set freely within the frequency range of 300MHz – 6000MHz
Typical jamming bands	410-440MHz, 830-870MHz, 875-915MHz, 920-960MHz, 1160-1200MHz,1220-1260MHz, 1440-1480MHz, GPS L1, 2.40-2.50GHz, 5.70-5.90GHz
Jamming distance	5km (0.1W transmitting power of target drone)
Transmitting power	≥100W/each jamming module jamming emission power software adjustable
Weight	≤28kg
Power supply	AC220V±10%, 50Hz
Operating temperature	-40°C ~ +60°C
Protection grade	IP65

Camera Unit
Visible camera	Tracking range	2km (Drone size: 0.3 x 0.3m)
	Focal length	6.5-312mm
	Image sensor	1/2.8″ 2.13MP CMOS
	Resolution	1080P (1920 x 1080)
Thermal camera	Tracking range	1km (Drone size: 0.3 x 0.3m)
	Focal length	75mm
	Resolution	640 x 512
	Spectrum range	8-14μm
	Sensitivity (NETD)	≤40mK
Pan-tilt	Rotation range	Horizontal: 360° continuous infinite position rotation; Vertical: -90°~+90°
Pan-tilt	Maximum speed	Horizontal: 60°/s; Vertical: 60°/s
Additional system	Dimension	≤350 x 250 x 190mm
	Weight	7.5kg
	Operation temperature and humidity	Temperature: -40℃~+60℃; Humidity: <90%RH
	Protection grade	IP66

Anti-Drone System

Main Features of Detecting Unit

• Advanced 3D active phased-array radar

• Low false alarm rate and excellent ability in clutter suppression

• Multiple target capability: able to search more than 200 targets simultaneously

• Full-automatic searching and tracking, supporting all day (24h) working

• Detection distance: ≥5km (depending on circumstances and drone type)

• User-friendly interface

Main Features of Jamming Unit

• Precise jamming without violence

• 9 frequency bands of jamming signals (Frequency bands and output power can be customized)

• Support automatic/manual models switching

• Remote control frequency jamming: coverage of all available civil drones

• Directional high-gain antennas mounted on Pan-Tilt platform can effectively track drone and transmit jamming signal in the direction of the drone

• Detecting Unit	x 1
• Jamming Unit	x 1
• Camera Unit	x 1
• Control Software	x 1
• Power Cable	x 1
• User Manual	x 1
