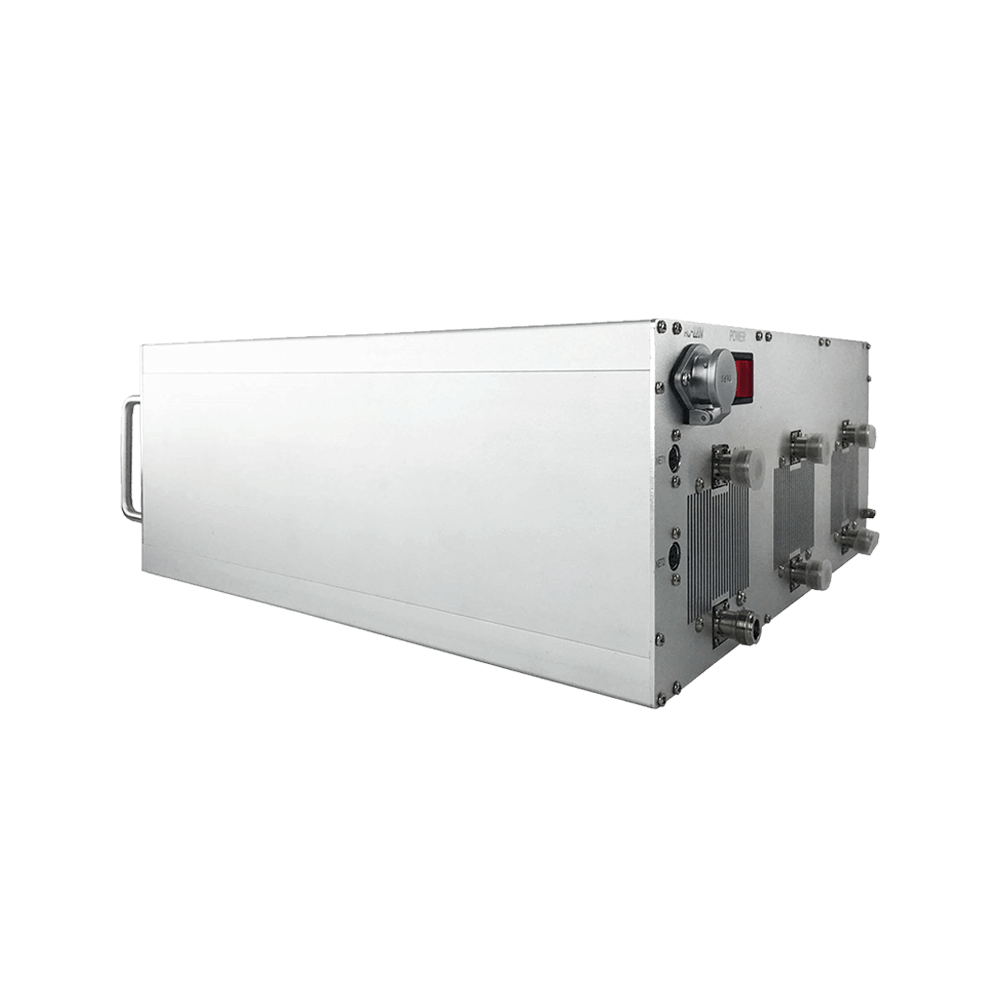

ND-BS003 Reactive Stationary Jammer
Overview
ND-BS003 Reactive Stationary Jammer is designed for blocking remote controlled improvised explosive devices (RCIED) used by terrorist.
Having considered the variety of jamming targets and the wide range of uncertainties, the more advanced and effective jamming signal modulation method is adopted, which significantly increases the jamming efficiency in each band.
By adopting our advanced and unique technology, the wideband frequency coverage of the system can range from 20 to 2700MHz (up to 6GHz based on requirements). In addition, automatic self-protection mechanism effectively supports stable operation and long service life by preventing the system from overheating and over-current.
Features
- Wideband frequency coverage range from 20 to 2700MH
- High sensitive threat signal detect low to -90dBm
- Total response time is less than 10μs
- High efficiency power amplifier technology
- High spectral power density up to 30W/MHz for extended jamming radius
(depending on maximum output power module choose, it can be up to 100W/MHz) - Advanced technology for efficient reactive jamming and power saving
- Slow start up design of circuit to make the device work stably
- Support in barrage jamming mode if needed
- Automatic Self-Protection to prevent from overheating and over current
- High input Voltage and low Voltage protection, VSWR protection
- Easy operation by using a wired connection to the control panel for system monitoring
Complete Set
- Jammer Host
- Antenna
- Battery
- Power Supply
- Remote Control(optional)
- User Manual
Specifications
| RF frequency band | 20~2700MHz (9 Bands) |
| Output power | Total RF power: 180W |
| Jamming signal bandwidth | Minimum: 30kHz(Barrage mode)/1MHz (Reactive mode) |
| Jamming signal type | Broadband white noise/CW/FM/AM |
| Detect signal sensitive | Minimum: -90dBm |
| Signal source | DDS (Direct Digital Synthesizer) |
| Reactive response time | <10μs |
| Spectral power density | 30W/MHz(depending on working band) |
| Jamming range | 10~100meter (*Max 1km) (depending on transmitter frequency and scenario) |
| Power supply | 220VAC |
| Power consumption | 500W |
| Remote control | Wire control panel or remote monitoring software (optional) |
| Dimensions | 390 x 390 x 250mm |
| Net weight | Approx. 20kg |
Bomb/RF Jamming System
• Wideband frequency coverage range from 20 to 2700MH
• High sensitive threat signal detect low to -90dBm
• Total response time is less than 10μs
• High efficiency power amplifier technology
• High spectral power density up to 30W/MHz for extended jamming radius
(depending on maximum output power module choose, it can be up to 100W/MHz)
• Advanced technology for efficient reactive jamming and power saving
• Slow start up design of circuit to make the device work stably
• Support in barrage jamming mode if needed
• Automatic Self Protection to prevent from overheating and over current
• High input Voltage and low Voltage protection, VSWR protection
• Easy operation by using a wired connection to the control panel for system monitoring
| • Jammer Host | x 1 (or several) |
| • Antenna | x 1 (or several) |
| • Battery | x 1 |
| • Power Supply | x 1 |
| • Remote Control(optional) | x 1 |
| • User Manual | x 1 |
